Roland SPD-SX PRO

32 GB Speicher
9 Pads
4,3" Farb-Display
bis zu 200 Kits (43 presets, 157 user kits)
über 1550 Samples
horizontale und vertikale LED´s
höhere Schulter-Pad Empfindlichkeit
16-Step Pad Sequencer Funktion
SPD-SX-Pro App für Windows/Mac zum einfachen importieren, managen und editieren von Drum KIts
32GB interner Speicher für Samples, Backing-Tracks, Click-Tracks
Symmetrischer Output


PadsBuilt-in pads: 9 (with PAD LED, Vertical LED)
* Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.Maximum Polyphony32 voices (included click voices)Number of Recordable Wave Data20,000
*Including preload dataInternal storageSize: 32 GB
*Including preload dataSampling TimeSampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sampleData Format16-bit linearSampling Frequency48 kHzImport FormatWAV, AIFF, MP3Kits200Preload waveFactory preloaded samples: 1,550 or moreSetlist32 (32 steps per SET LIST)Kit EffectsLayer Equalizer : each pad (Layer A/B independently)
Layer Transient : each pad (Layer A/B independently)
Multi-Effects (53 types) : 4 systems
Side Chain Compressor : 1 systemSystem EffectsMaster Effects (53 types)
Master Compressor
Master EqualizerNumber of USB Audio Record/Playback ChannelsSampling Rate (Original): 48 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
Record: 8 channels

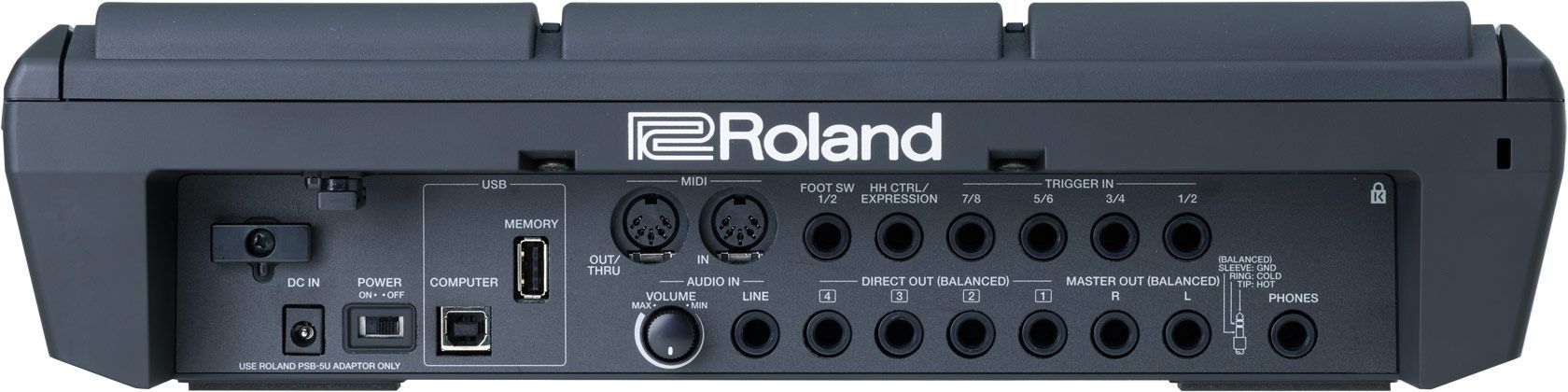

Playback: 12 channelsDisplayGraphic color LCD 4.3 inchConnectorsPHONES jack : Stereo 1/4-inch phone type
MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App)
USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
DC IN jackPower SupplyDC 12V (AC Adaptor)Current Draw1,500 mAAccessoriesQuick Start
Leaflet "Read Me First"
Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES"
AC Adaptor

Depth330.3 mm
Height92.9 mm
Weight: 3.0 kg
