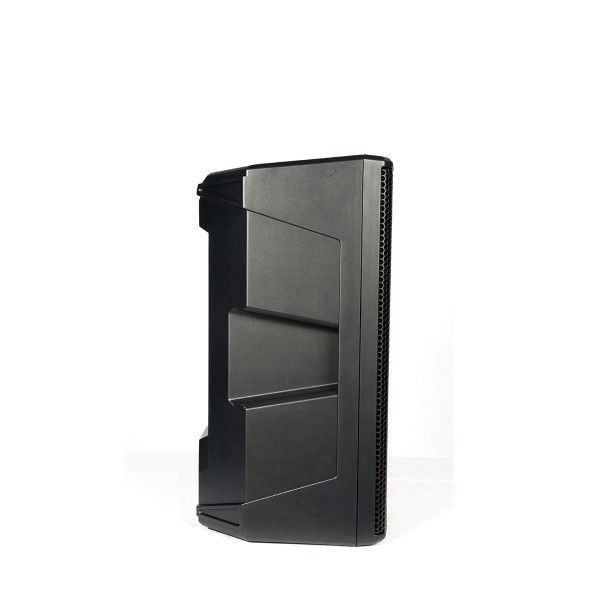

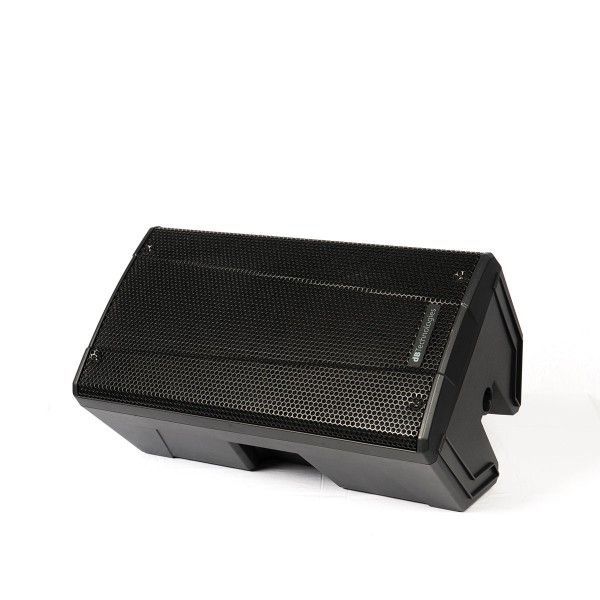

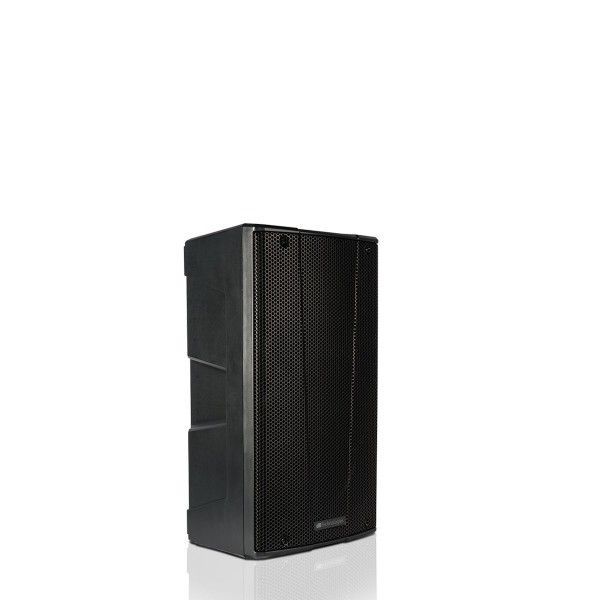

dB Technologies B-HYPE 10 PA-Box 10/2, Aktiver Fullrangelautsprecher
aktiver Beschallungs-Lautsprecher, 10 " Speaker+ 1"HT, 260W Peak digitale Endstufe mit DSP, 1x Combo MIK/LINE IN, XLR-Out, Max SPL: 121 dB
199,00 €*
1“ Hochtöner
digitale Endstufe
260 Watt/Peak
24-Bit DSP
Gewicht 9 kg
Speaker Type: 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]65 - 20.000 Hz
Frequency Response [-6 dB]62 - 19.600 Hz
Max SPL121 dB
Type HF Compression Driver
HF voice coil 1 "
LF 10 "
LF voice coil 1.5 "
Crossover Frequency 2300 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amp Technology Custom Made
Amp ClassClass D - Passive cooling (convection)
Power Peak 260 W
Processor
Controller DSP 28/56 bit- 48 kHz
Limiter Peak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset

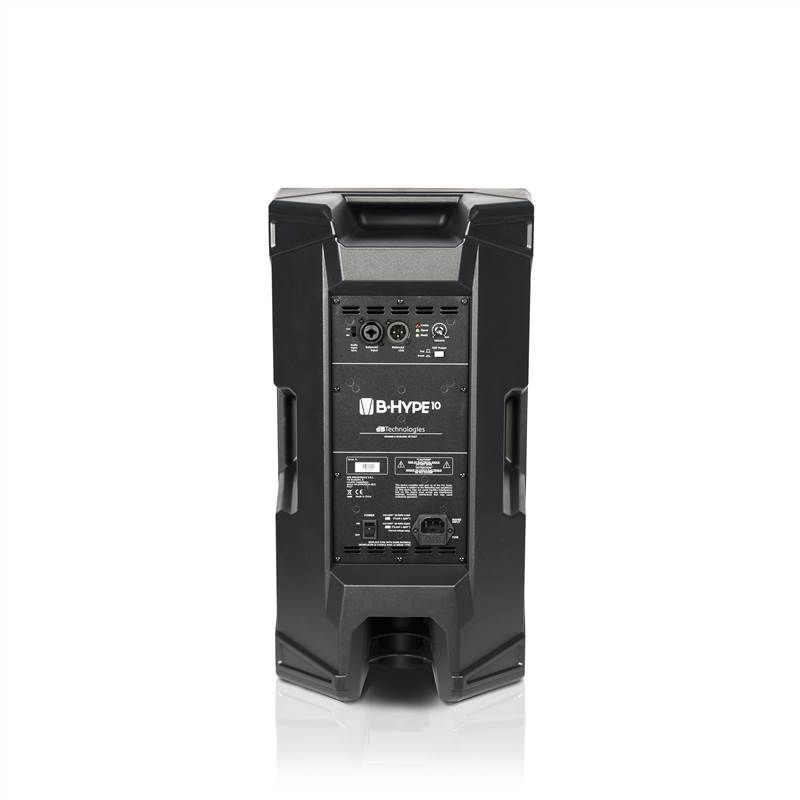

Input
Main Connection VDE
Signal Input Balanced 1xCombo IN (MIC/LINE)
Signal Out (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing Polypropylene
Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width:295 mm, Height:544mm, Depth:283 mm
Weight: 9 kg
Angles Up Double wedge angle 45°
