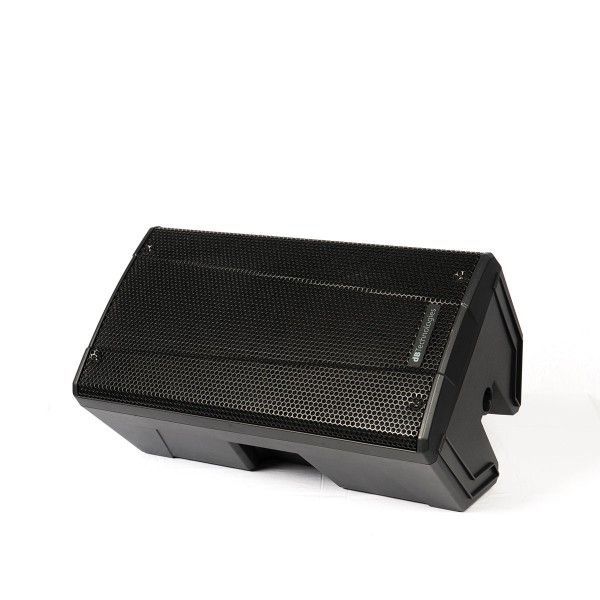

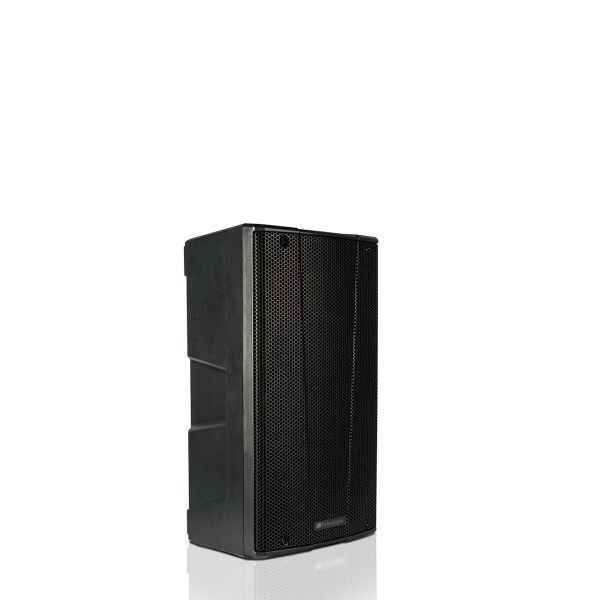

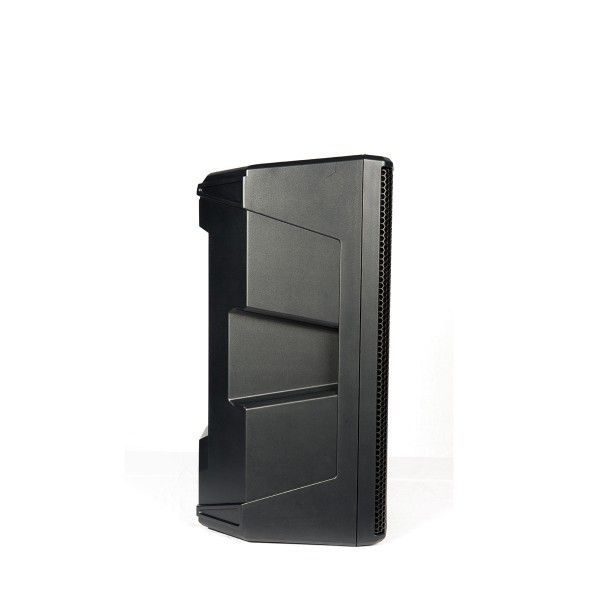

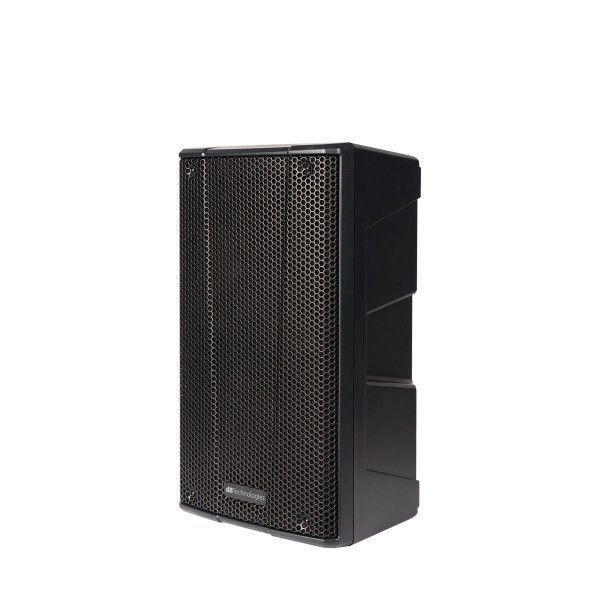

dB Technologies B-HYPE 8 PA-Box 8/2, Aktiver Fullrangelautsprecher
aktiver Beschallungs-Lautsprecher, 8 " Speaker+ 1"HT, 260W Peak digitale Endstufe mit DSP, 1x Combo MIK/LINE IN, XLR-Out, Max SPL: 120 dB
€159.00*
Product number:
00034930
B-Hype 8
Multifunktioneller 8“/1“ Aktiv-Lautsprecher im Kunststoffgehäuse mit 240 Watt Endstufe. Einsetzbar als Bühnenmonitor, Vollbereichslautsprecher in kleinen Anwendungen oder in Verbindung mit Subwoofer.
Properties "dB Technologies B-HYPE 8 PA-Box 8/2, Aktiver Fullrangelautsprecher"
8“ Tieftöner
1“ Hochtöner
digitale Endstufe
240 Watt/Peak
24-Bit DSP
Gewicht 6,6 kg
Speaker Type: 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]65 - 20.000 Hz
Frequency Response [-6 dB]70 - 19.600 Hz
Max SPL120 dB
Type HF Compression Driver
HF voice coil 1 "
LF 8 "
LF voice coil 1.5 "
Crossover Frequency 2300 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amp Technology Custom Made
Amp ClassClass D - Passive cooling (convection)
Power Peak 260 W
Processor
Controller DSP 28/56 bit- 48 kHz
Limiter Peak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset

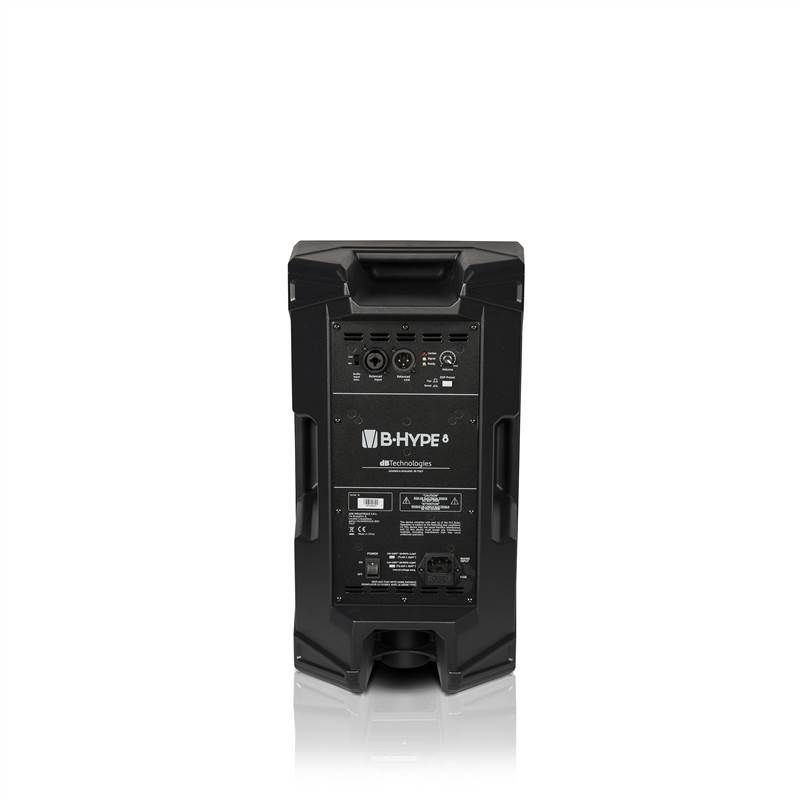

Input
Main Connection VDE
Signal Input Balanced 1xCombo IN (MIC/LINE)
Signal Out (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing Polypropylene
Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width243 mm, Height443mm, Depth231 mm
Weight 6.6 kg
Angles Up Double wedge angle 45°
1“ Hochtöner
digitale Endstufe
240 Watt/Peak
24-Bit DSP
Gewicht 6,6 kg
Speaker Type: 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]65 - 20.000 Hz
Frequency Response [-6 dB]70 - 19.600 Hz
Max SPL120 dB
Type HF Compression Driver
HF voice coil 1 "
LF 8 "
LF voice coil 1.5 "
Crossover Frequency 2300 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amp Technology Custom Made
Amp ClassClass D - Passive cooling (convection)
Power Peak 260 W
Processor
Controller DSP 28/56 bit- 48 kHz
Limiter Peak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection VDE
Signal Input Balanced 1xCombo IN (MIC/LINE)
Signal Out (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing Polypropylene
Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width243 mm, Height443mm, Depth231 mm
Weight 6.6 kg
Angles Up Double wedge angle 45°
